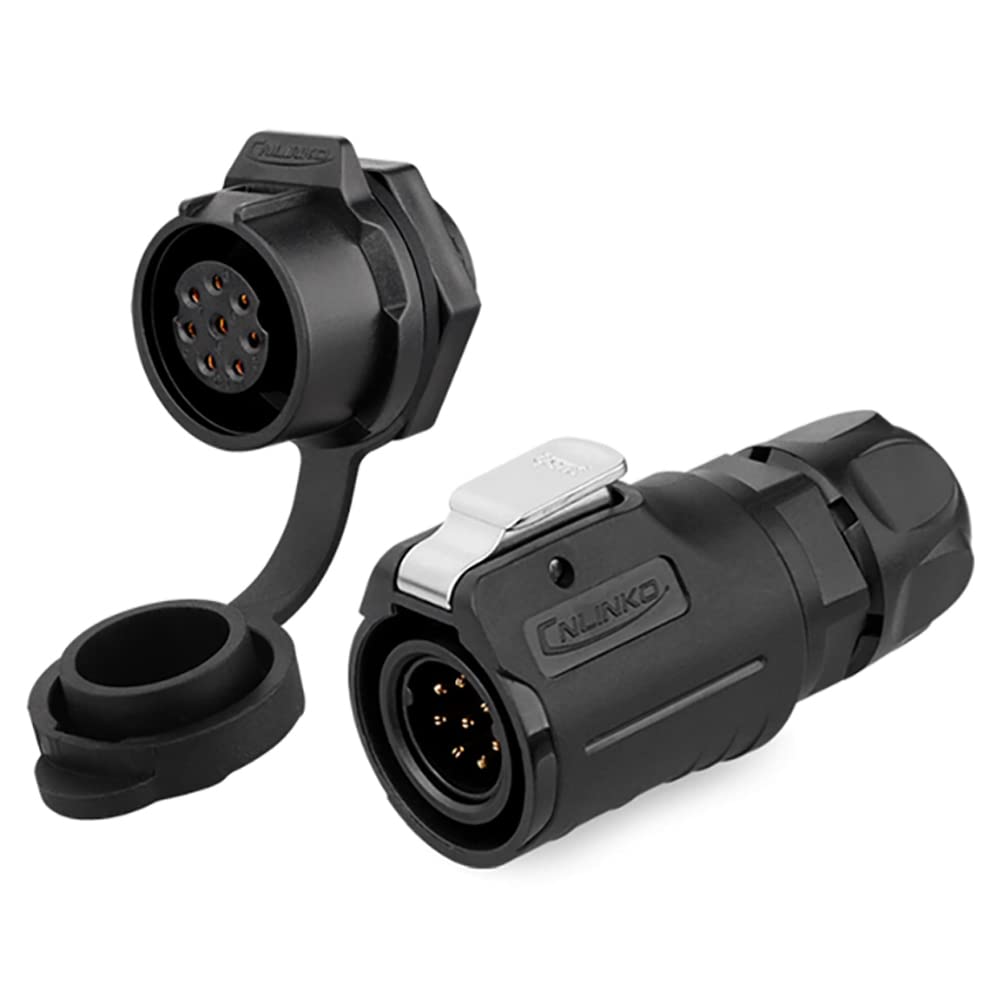

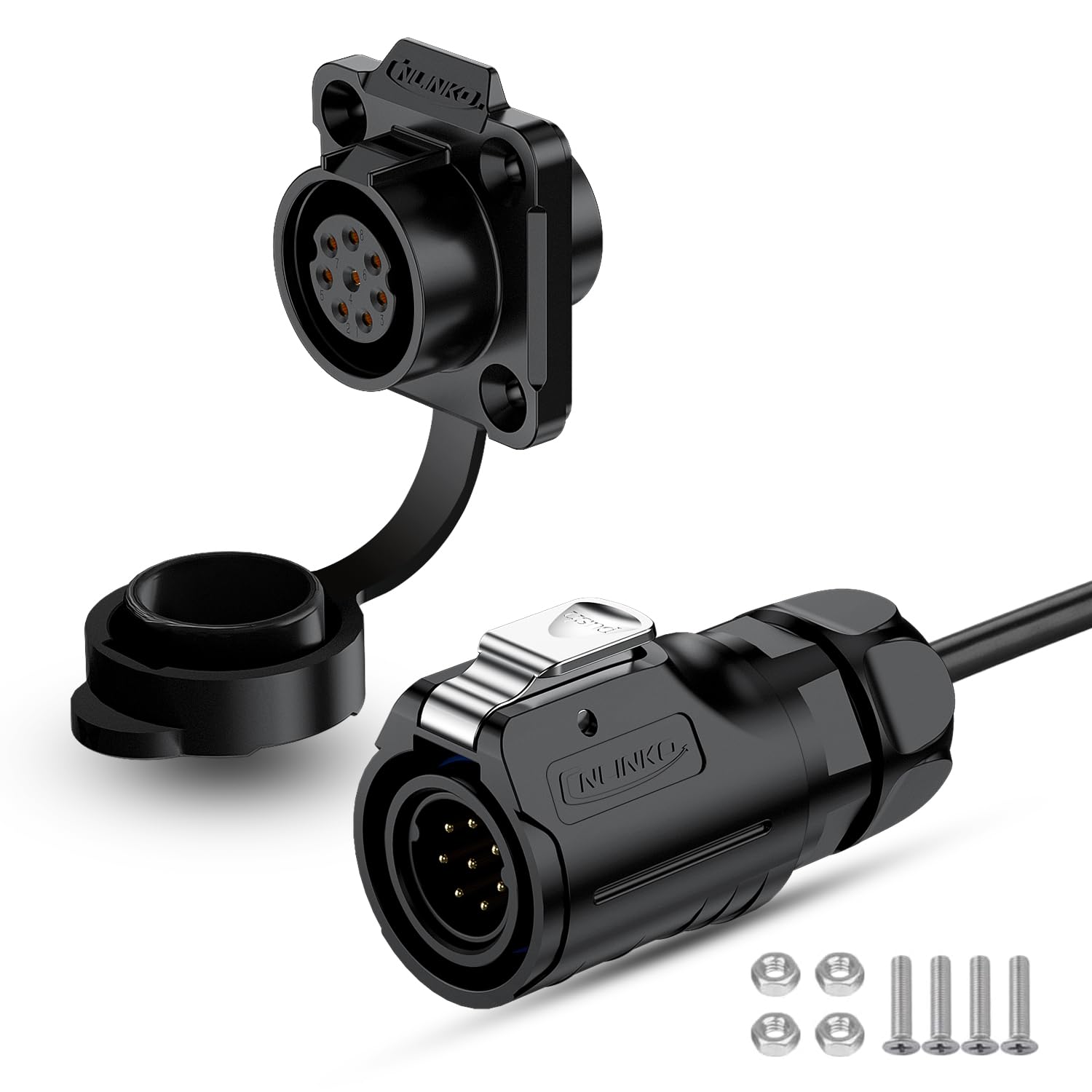

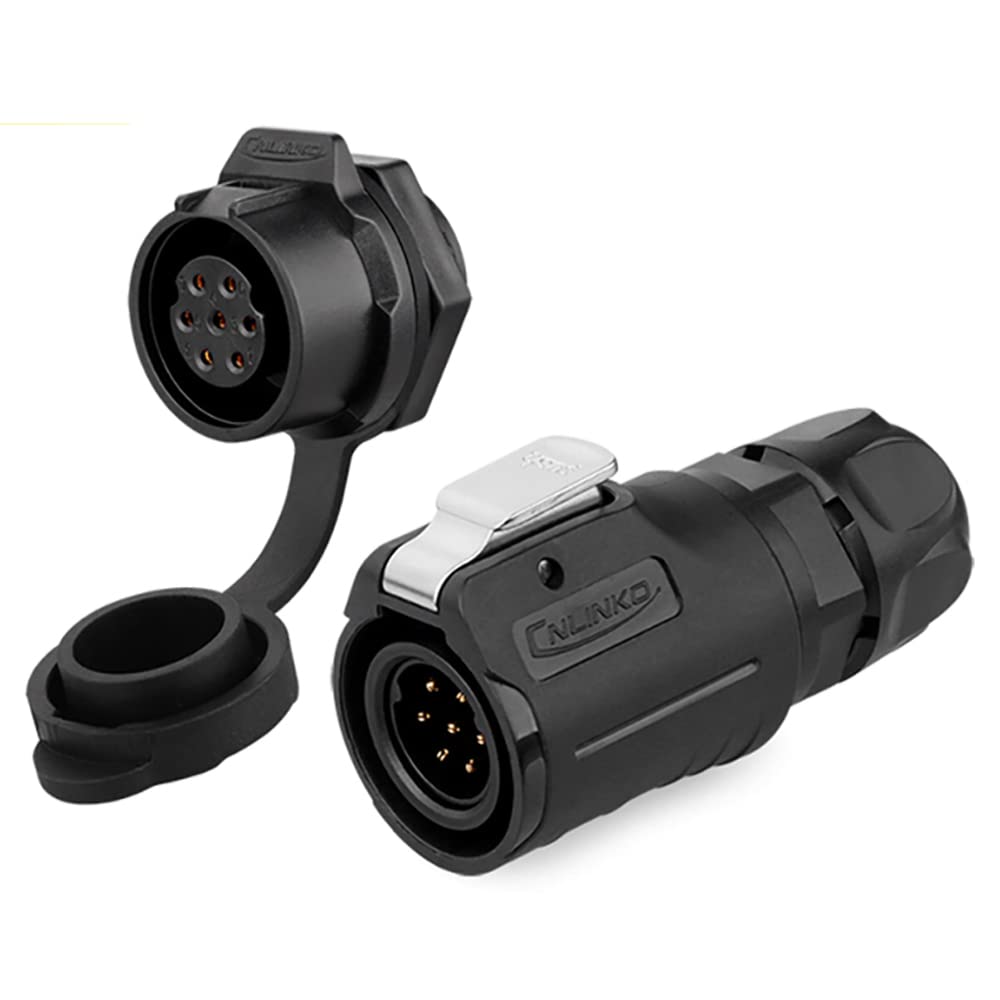

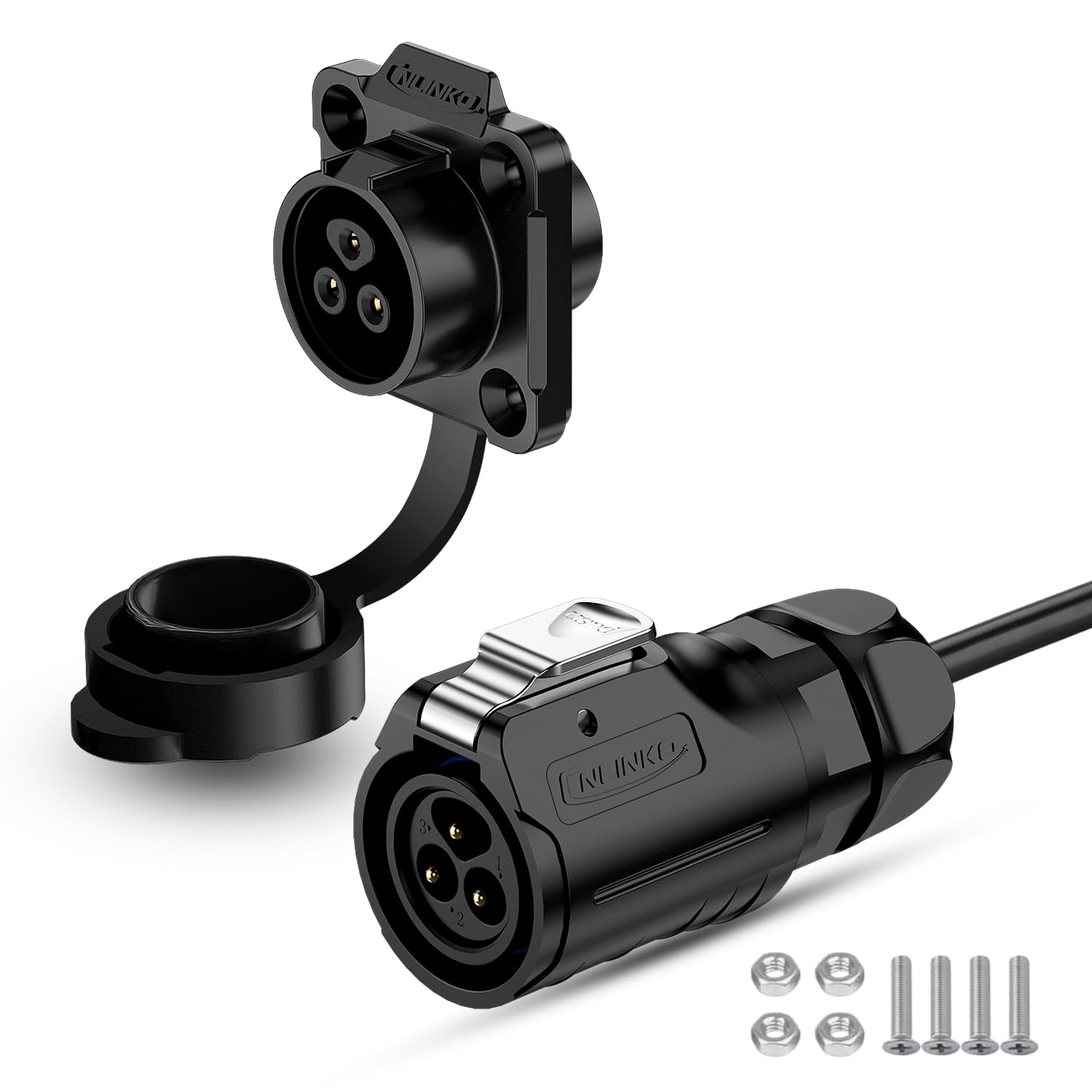

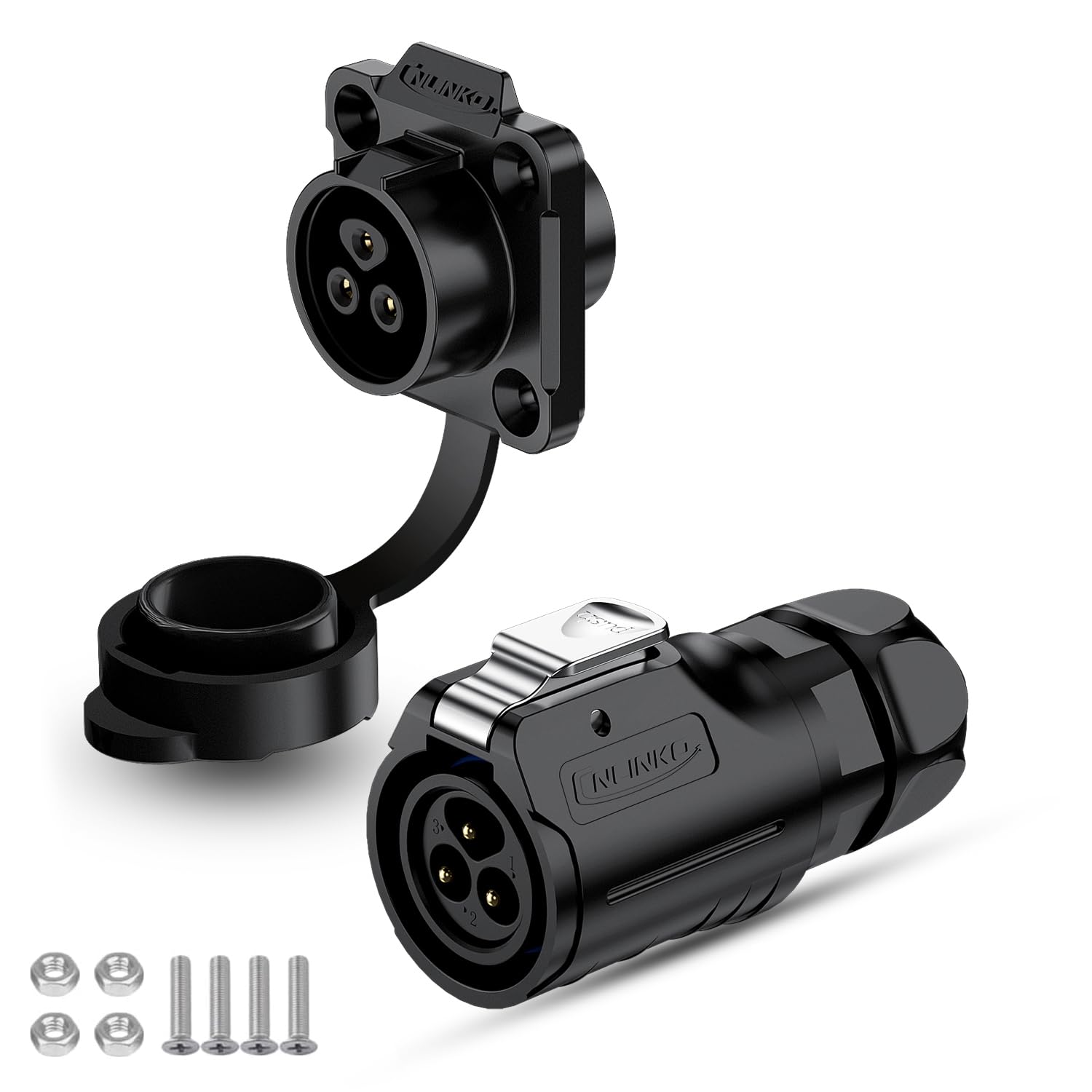

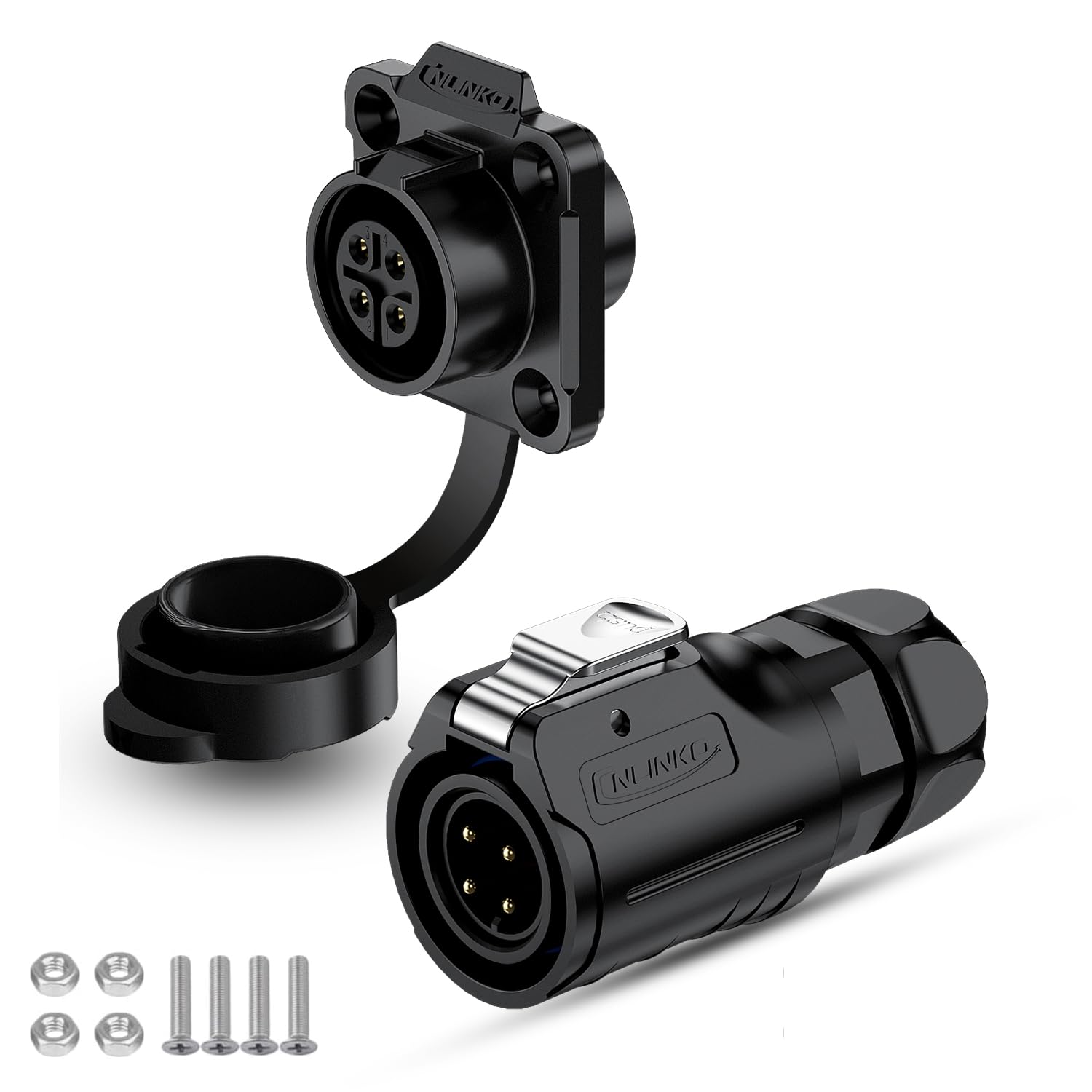

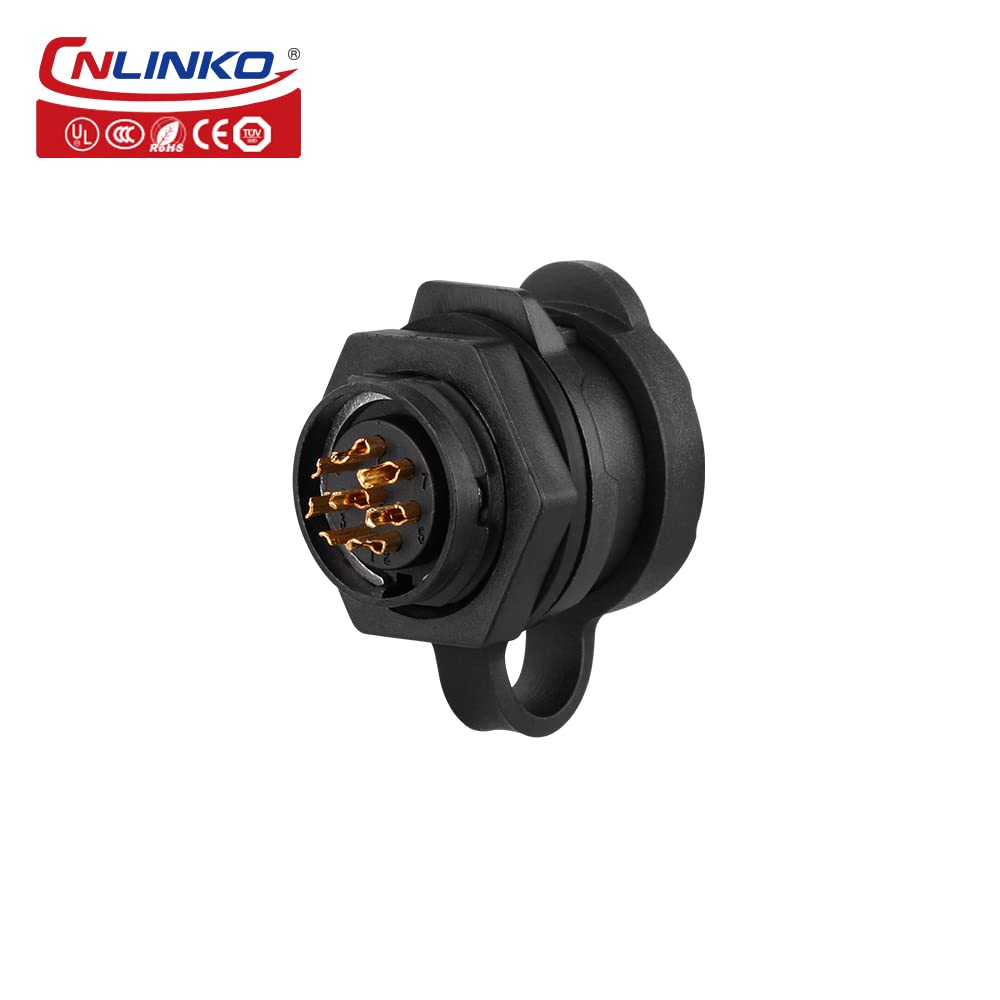

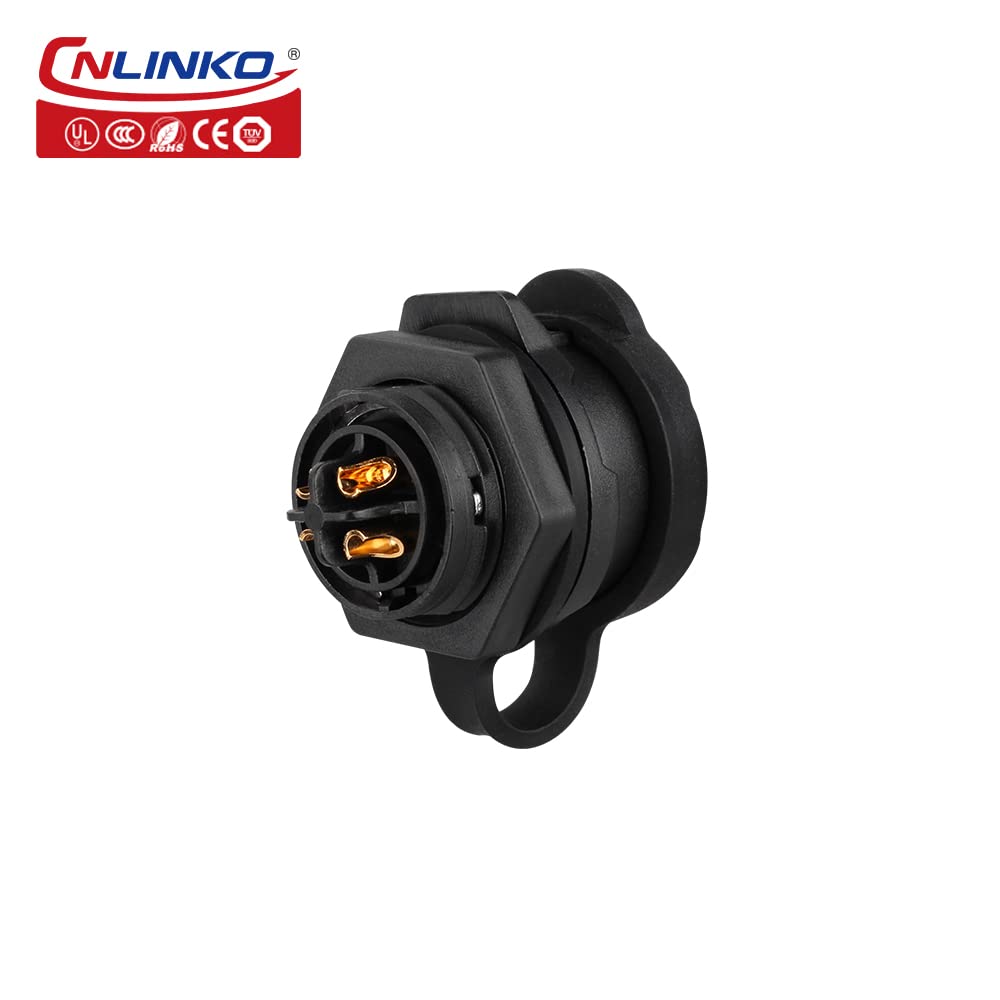

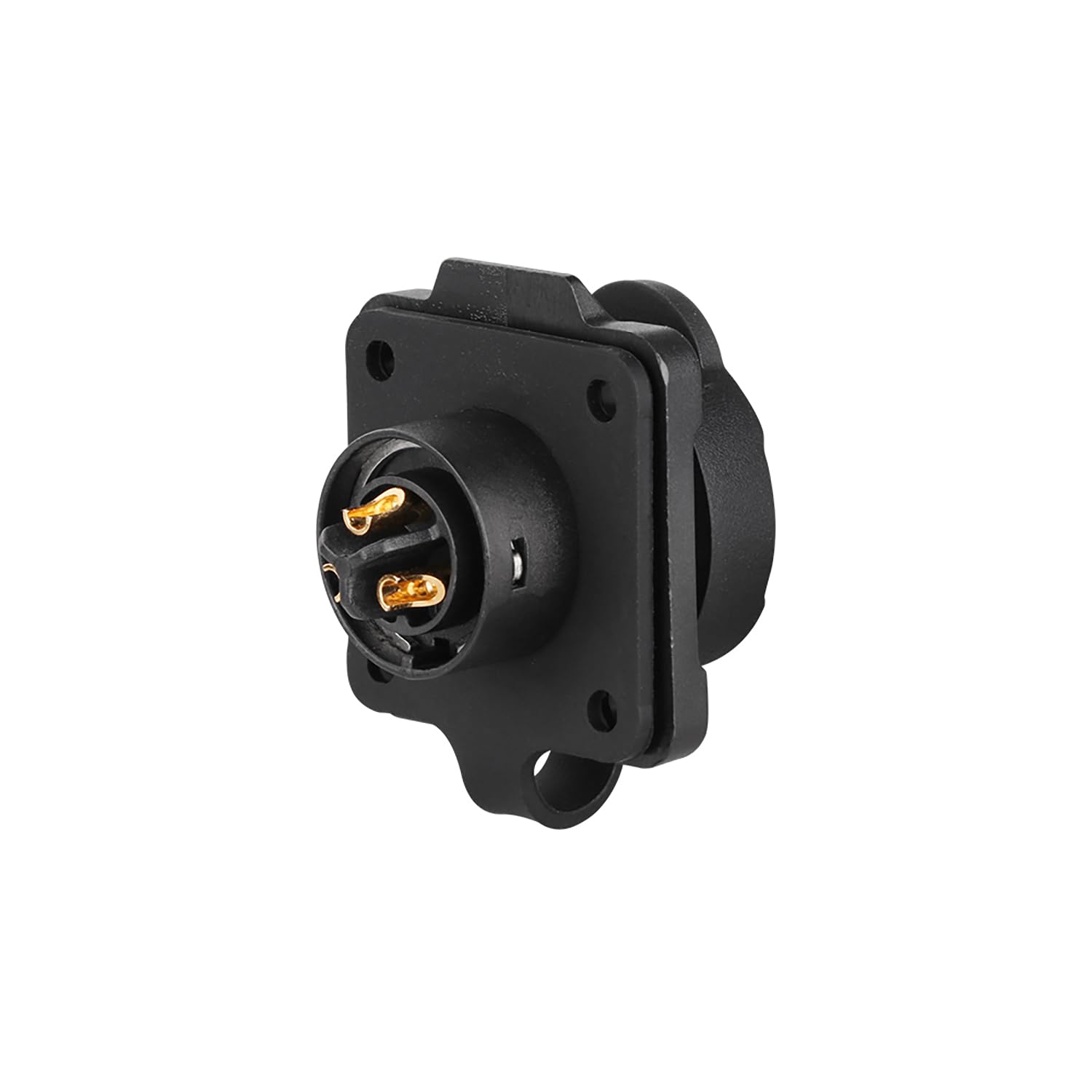

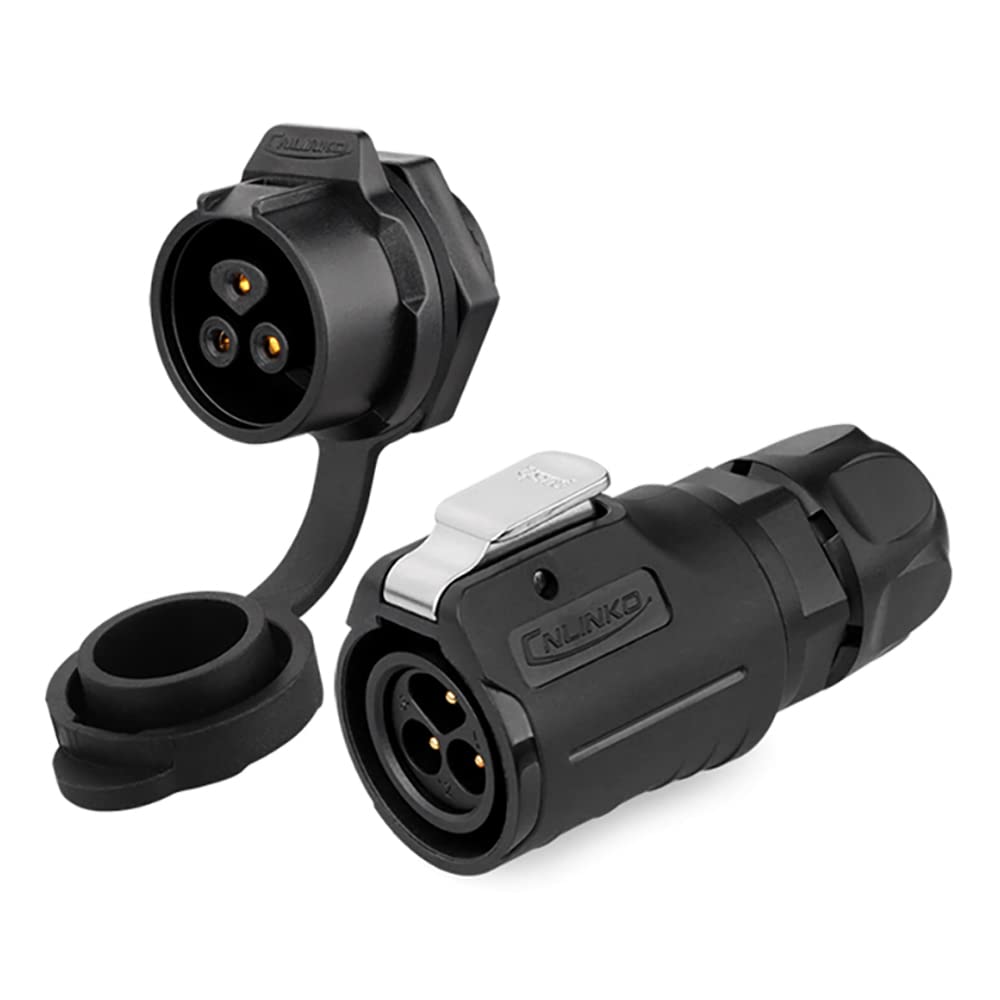

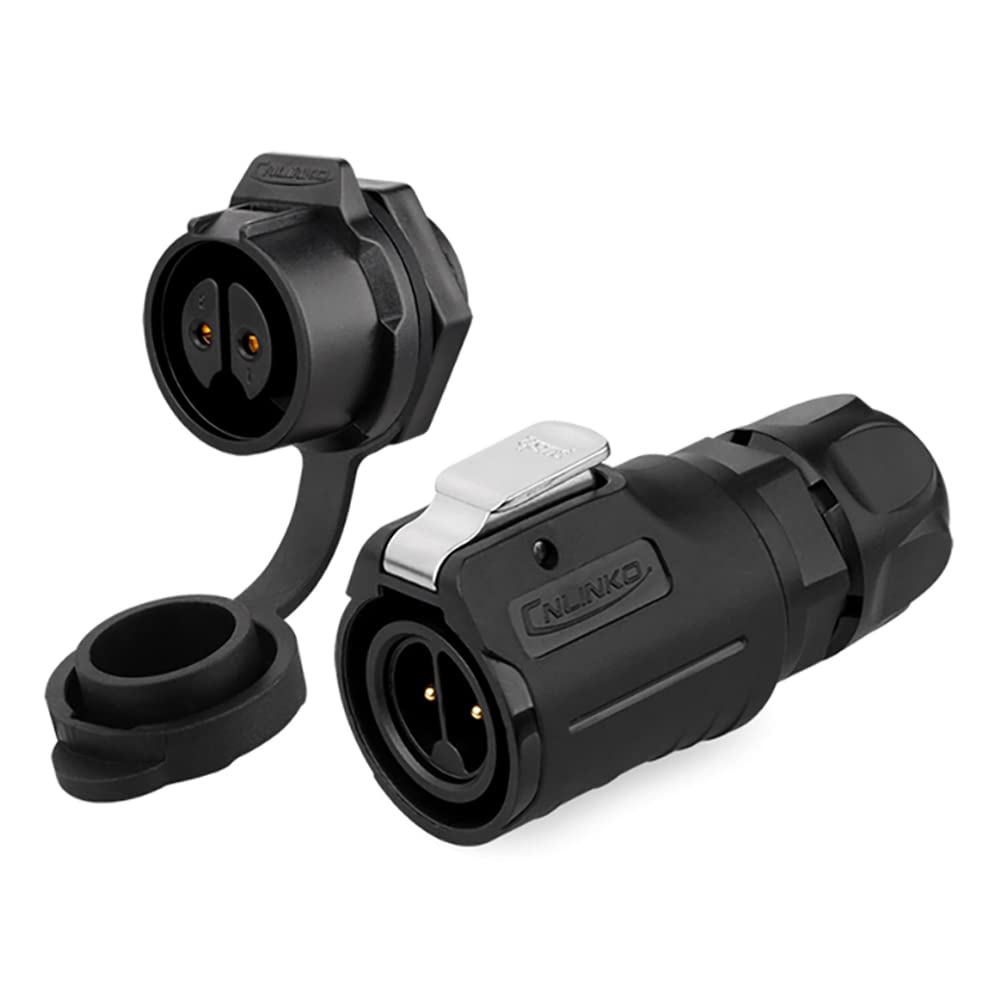

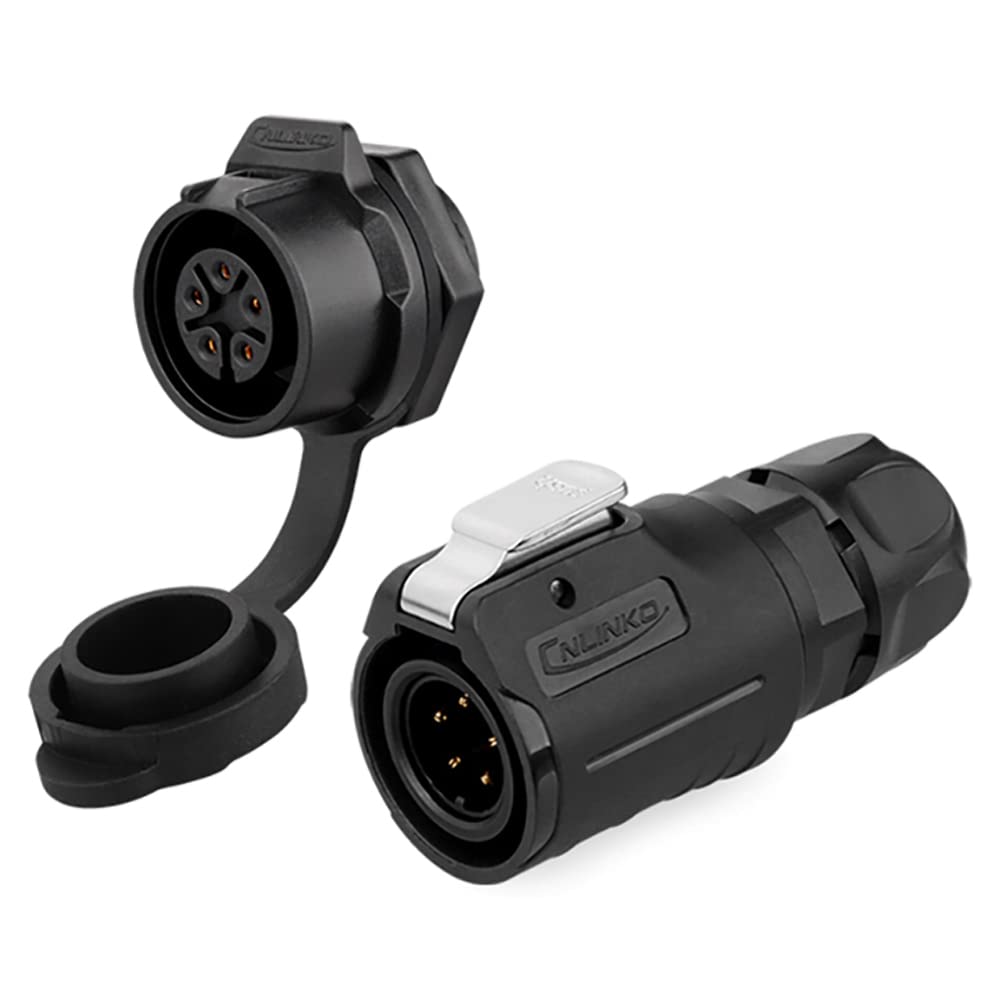

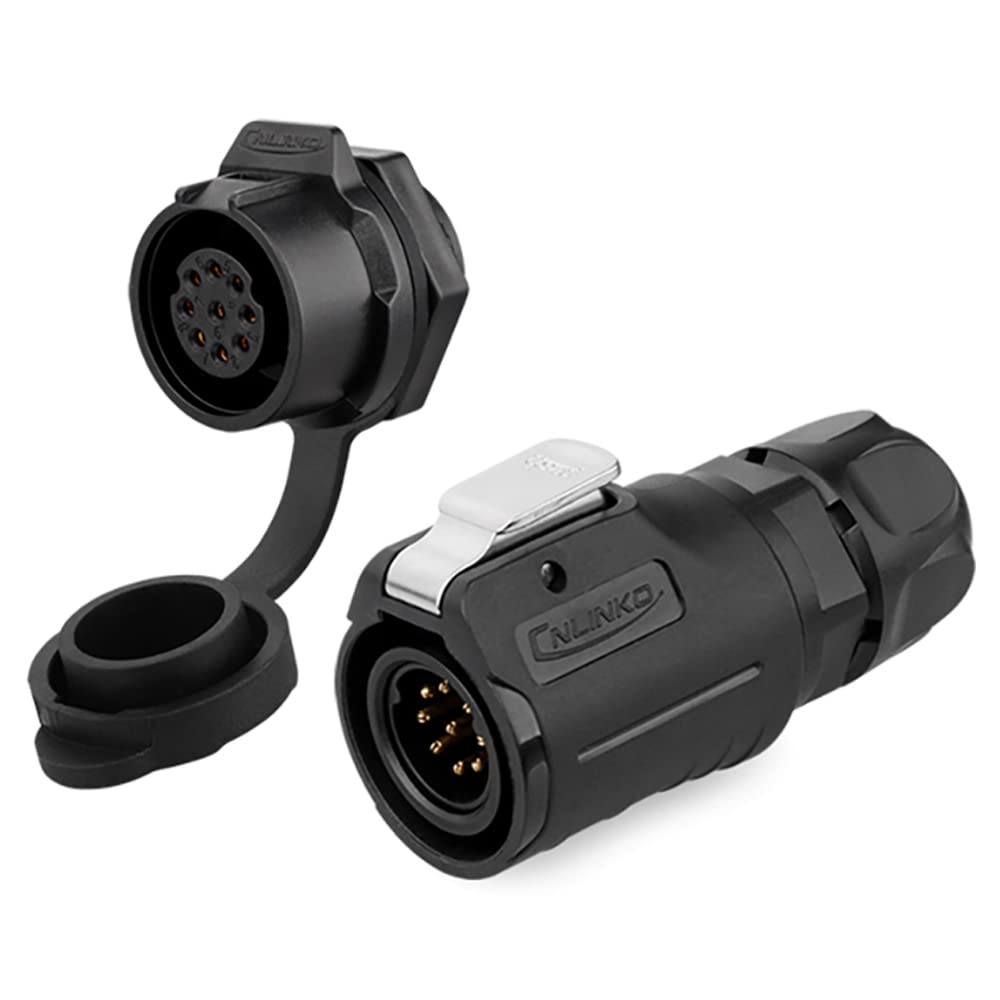

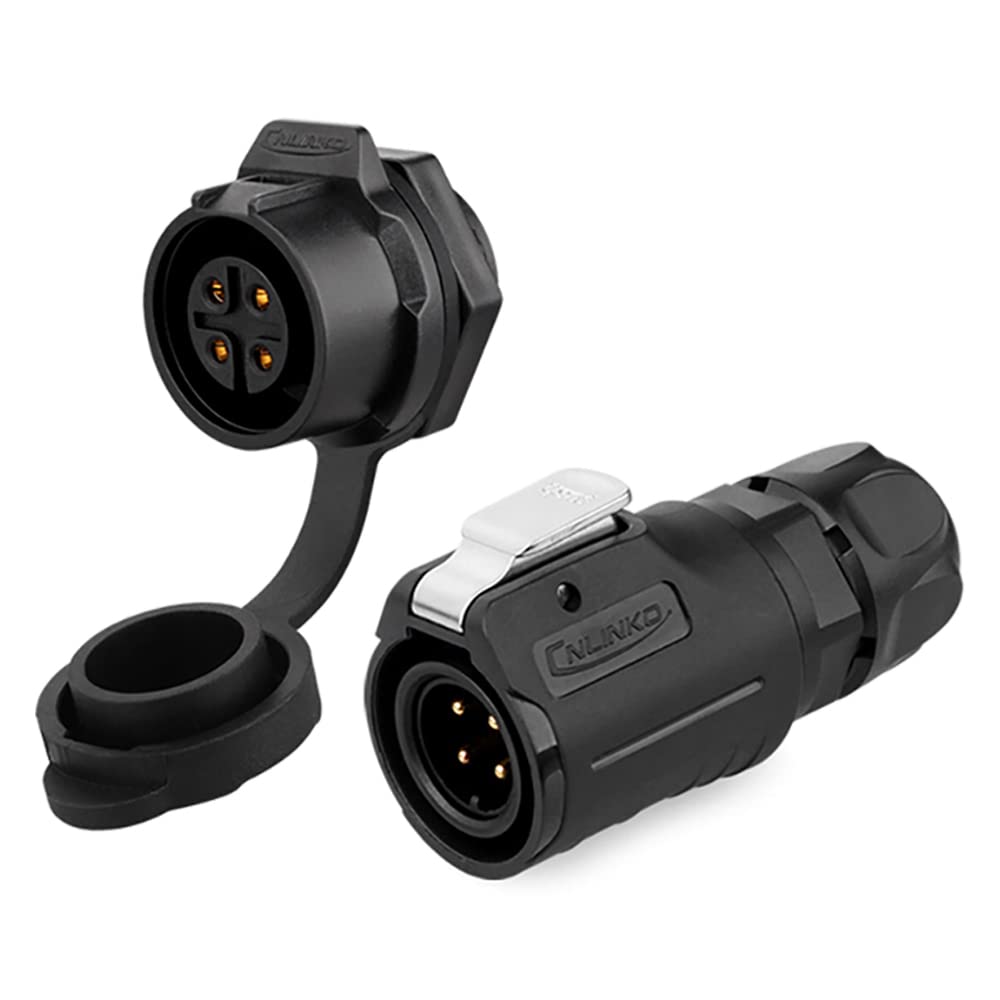

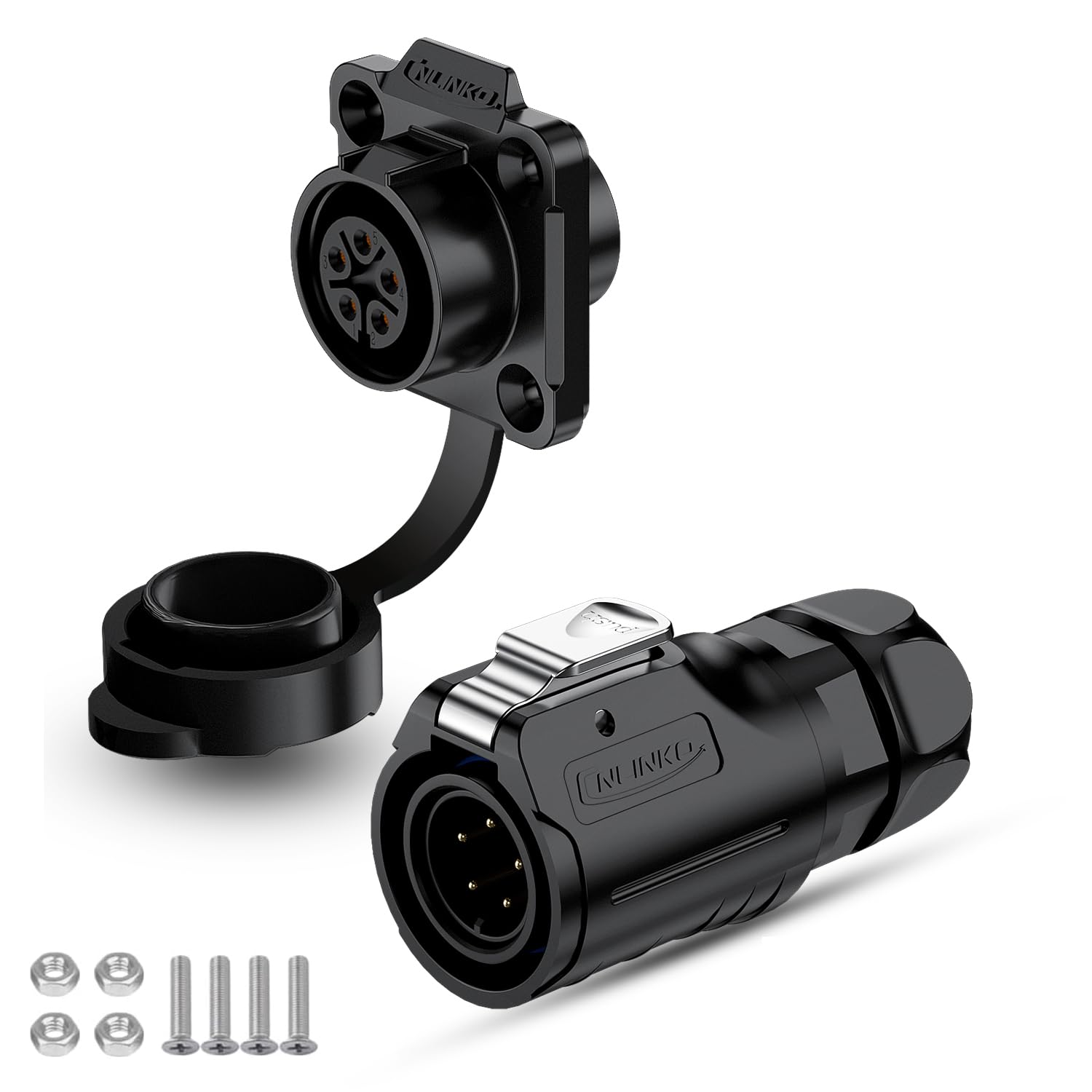

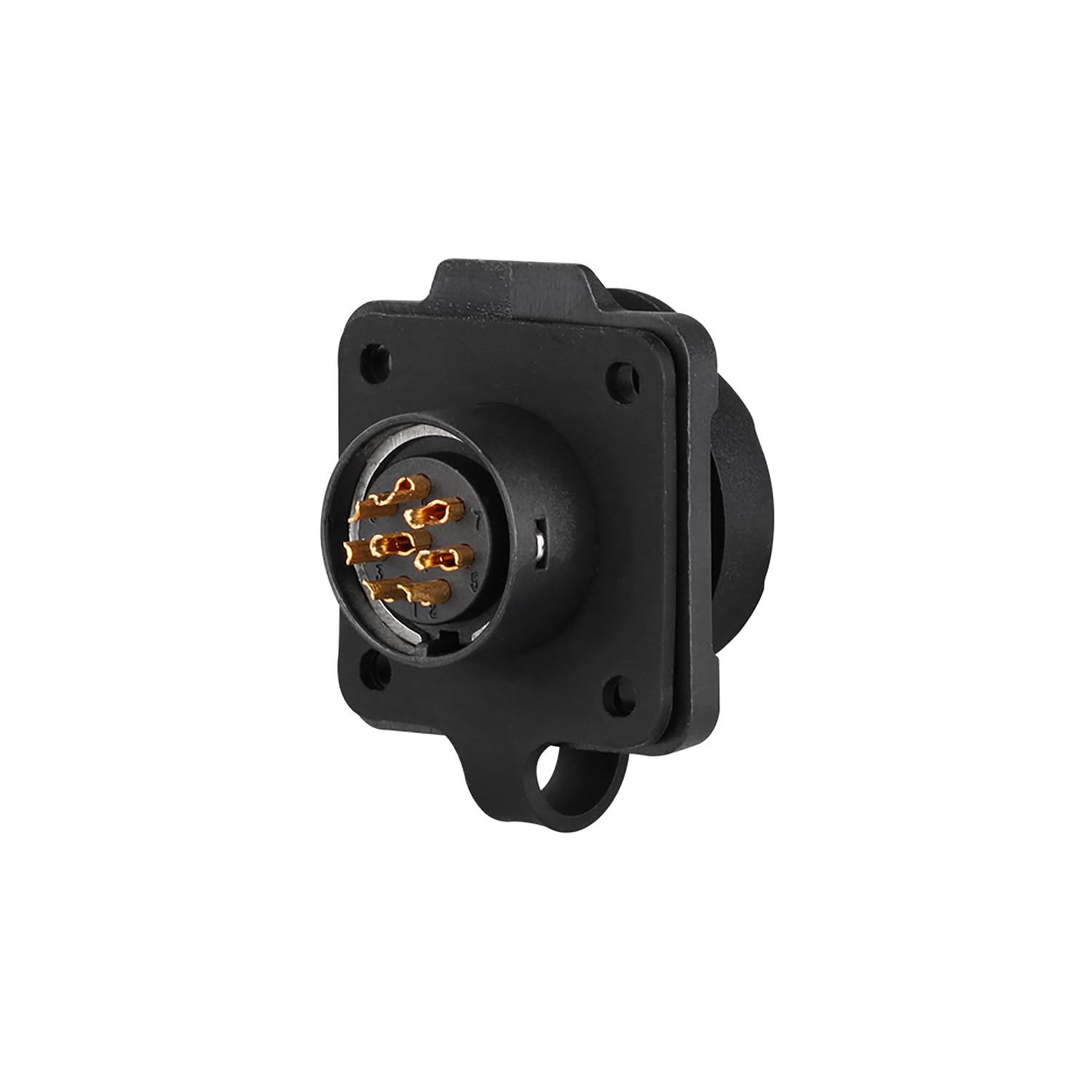

CNLINKO LP-16 IP68 Industrial Waterproof Connector Quick Plug Circular Connector PBT Plastic Shell Aviation Connector M16 2-9 Pin Flange Socket (2 Pin)
CNLINKO LP-16 IP68 Industrial Waterproof Connector Quick Plug Circular Connector PBT Plastic Shell Aviation Connector M16 2-9 Pin Flange Socket (2 Pin)
Couldn't load pickup availability

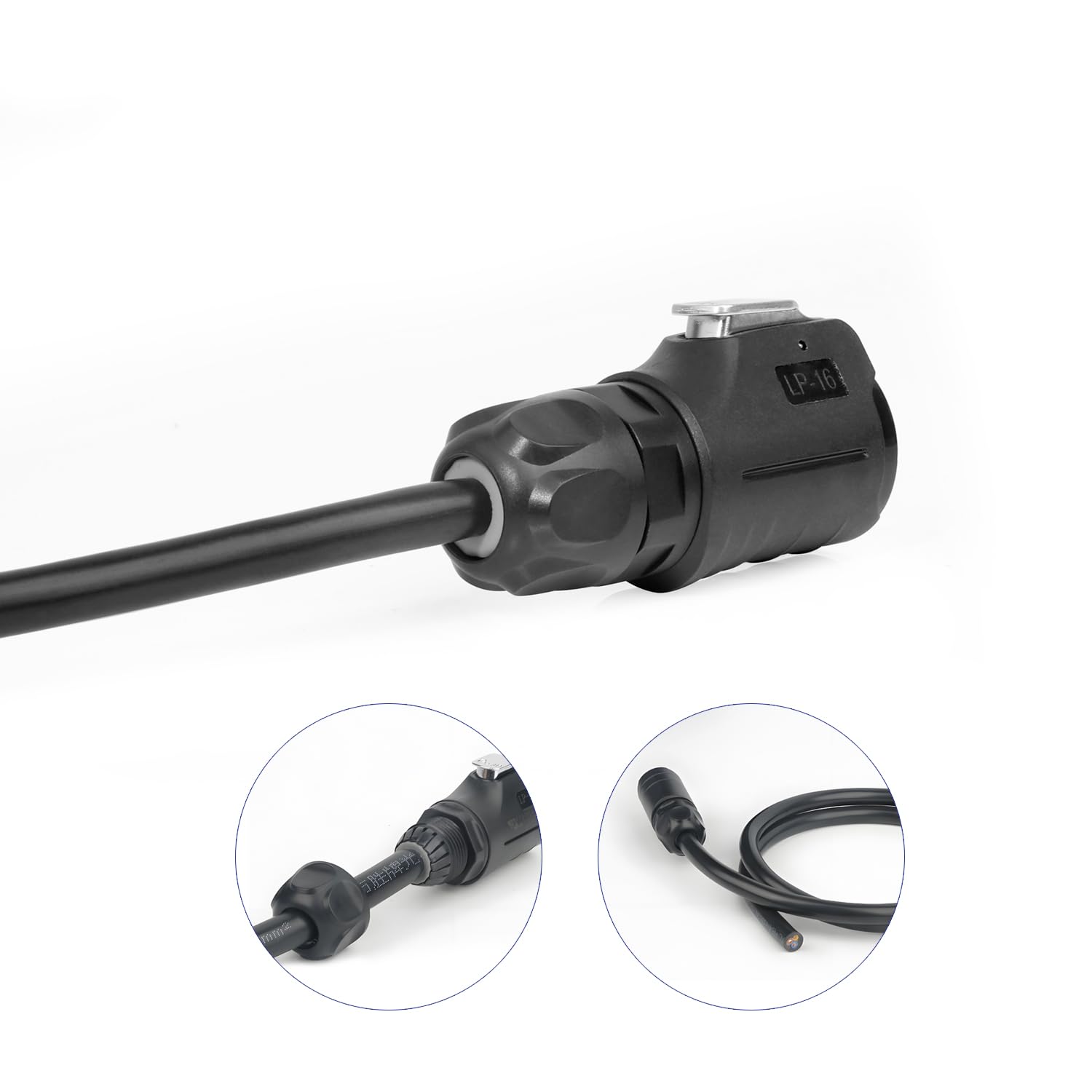

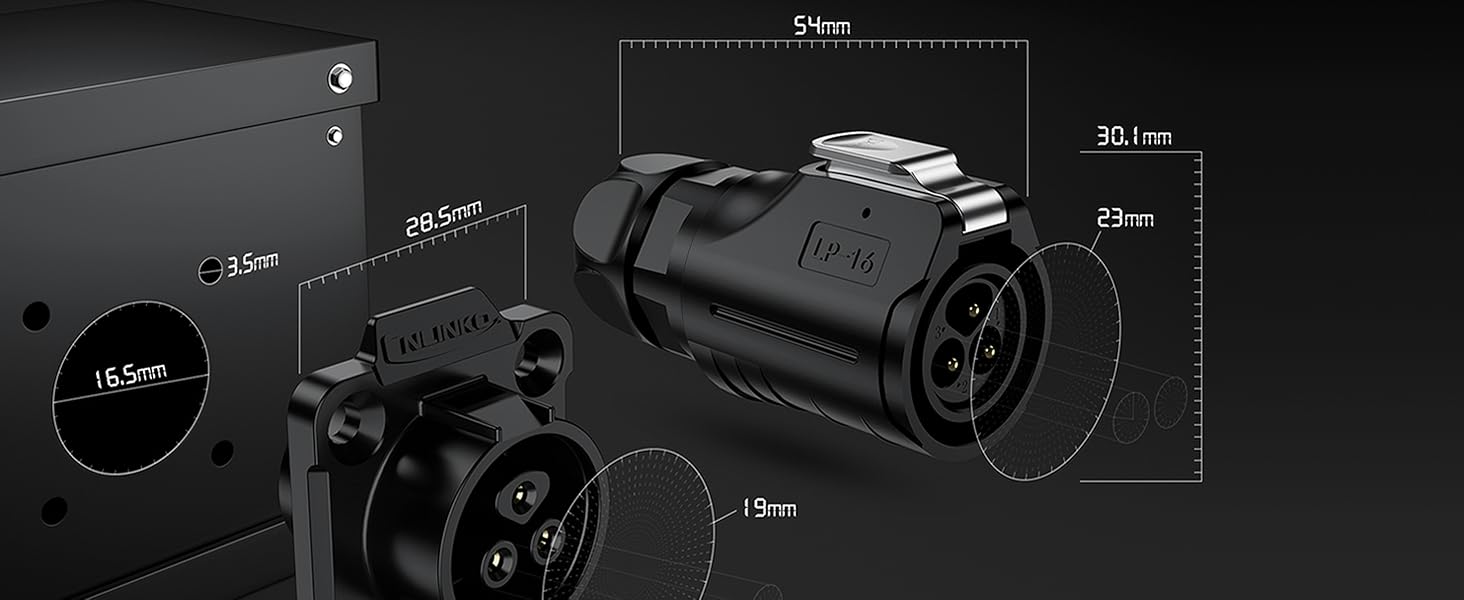

CNLINKO LP-16 Industy Waterproof Connector
LP-16 has good sealing performance due to its strong and rigorous spring loaded self-locking device to seal the waterproof ring.

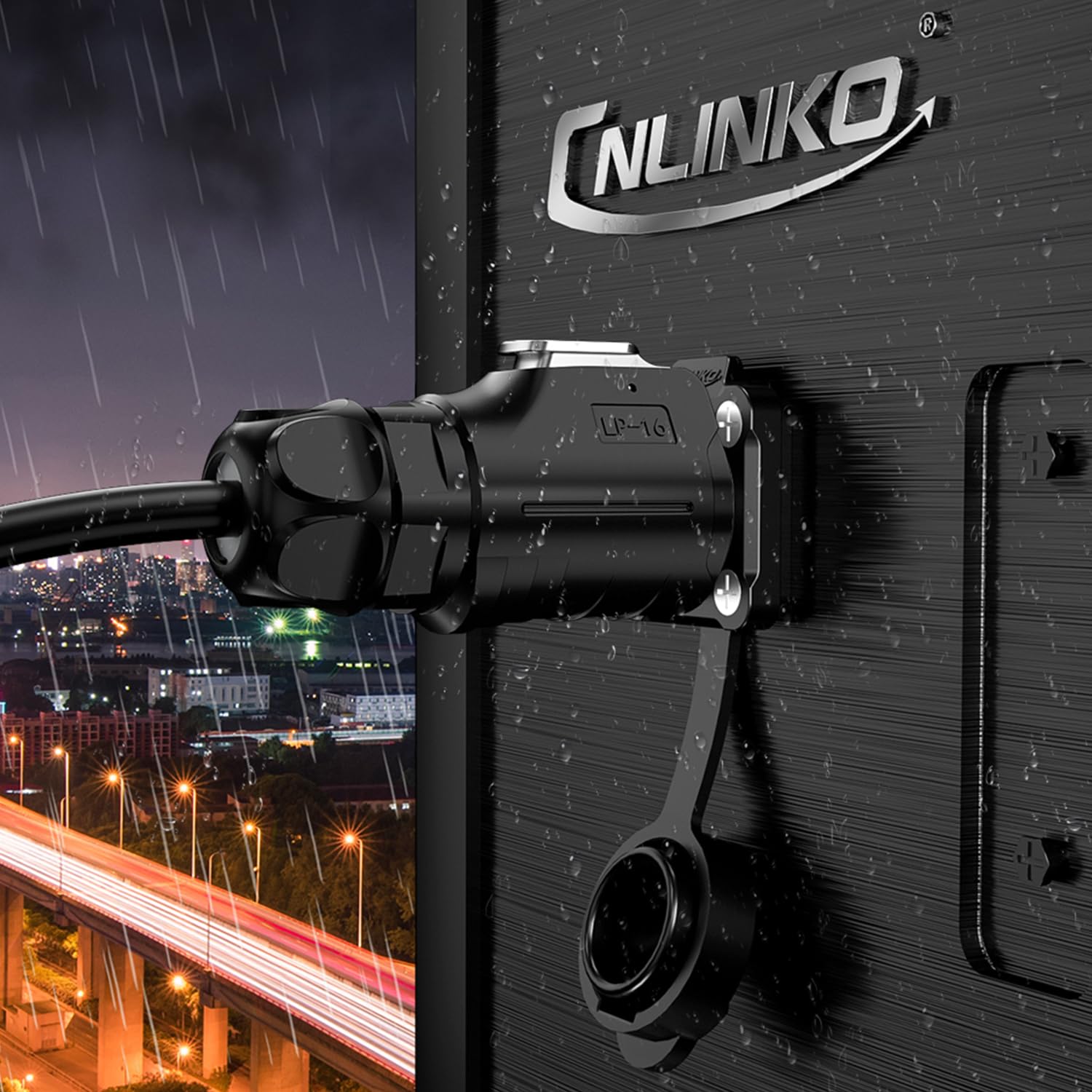

It can maintain good waterproof performance even under harsh outdoor weather conditions.
Guaranteeing stable electrical performance of the equipment at all times.
The product can achieve IP67 protection level in connected state.
Excellent Comprehensive Strength
Independent Reinforced Lock:
Fast plugging design.Easy and precise assembly, and just tap to release.
Delicate Lock Slot And Logo:
Every detail has been carefully designed and optimized, with excellent protection performance inside and outside.

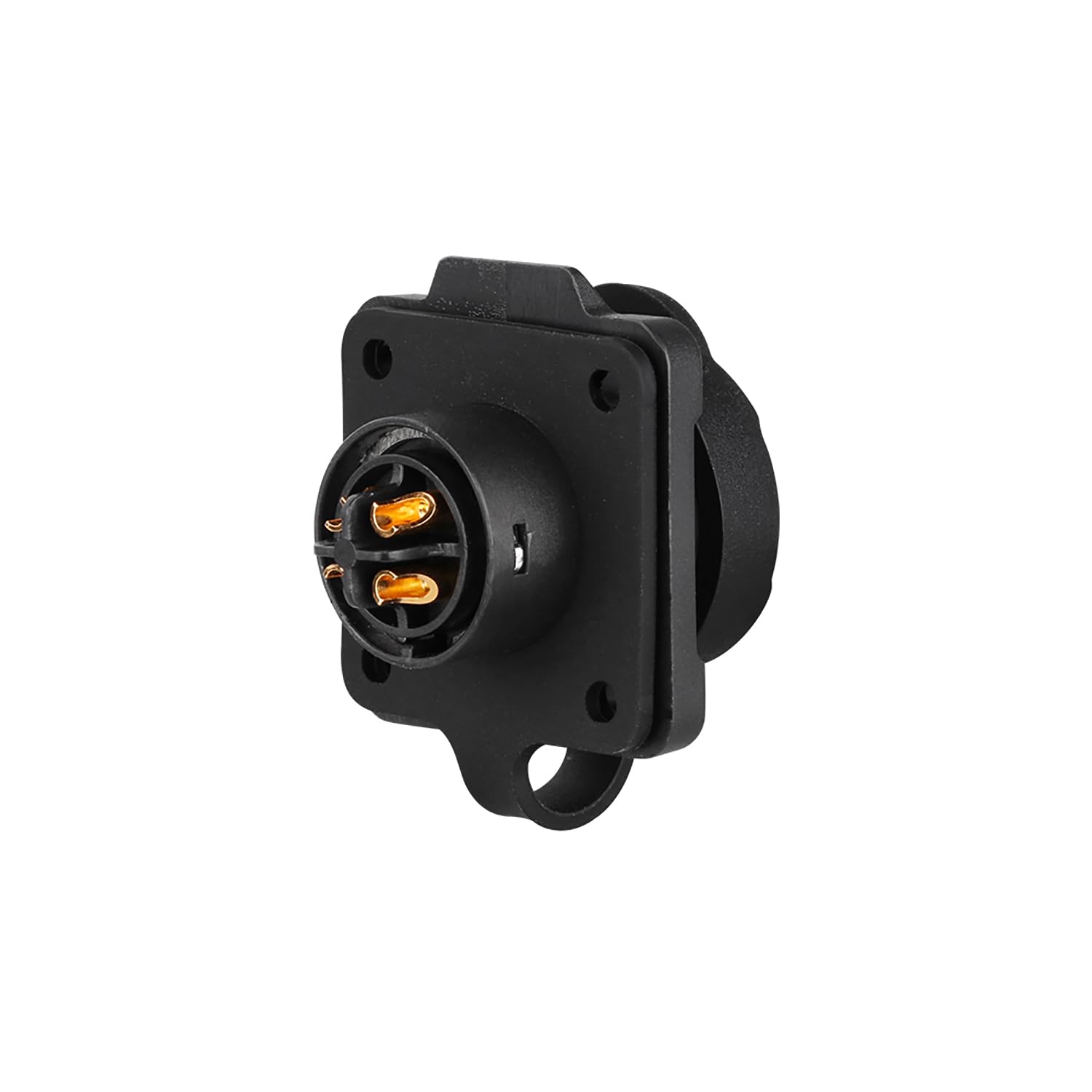

3um Gold Plating Contact Core:
Stable transmission performance, durability and corrosion resistance. Ensuring the stable electrical performance of the equipment at all times.
PBT Material One-Piece Shell:

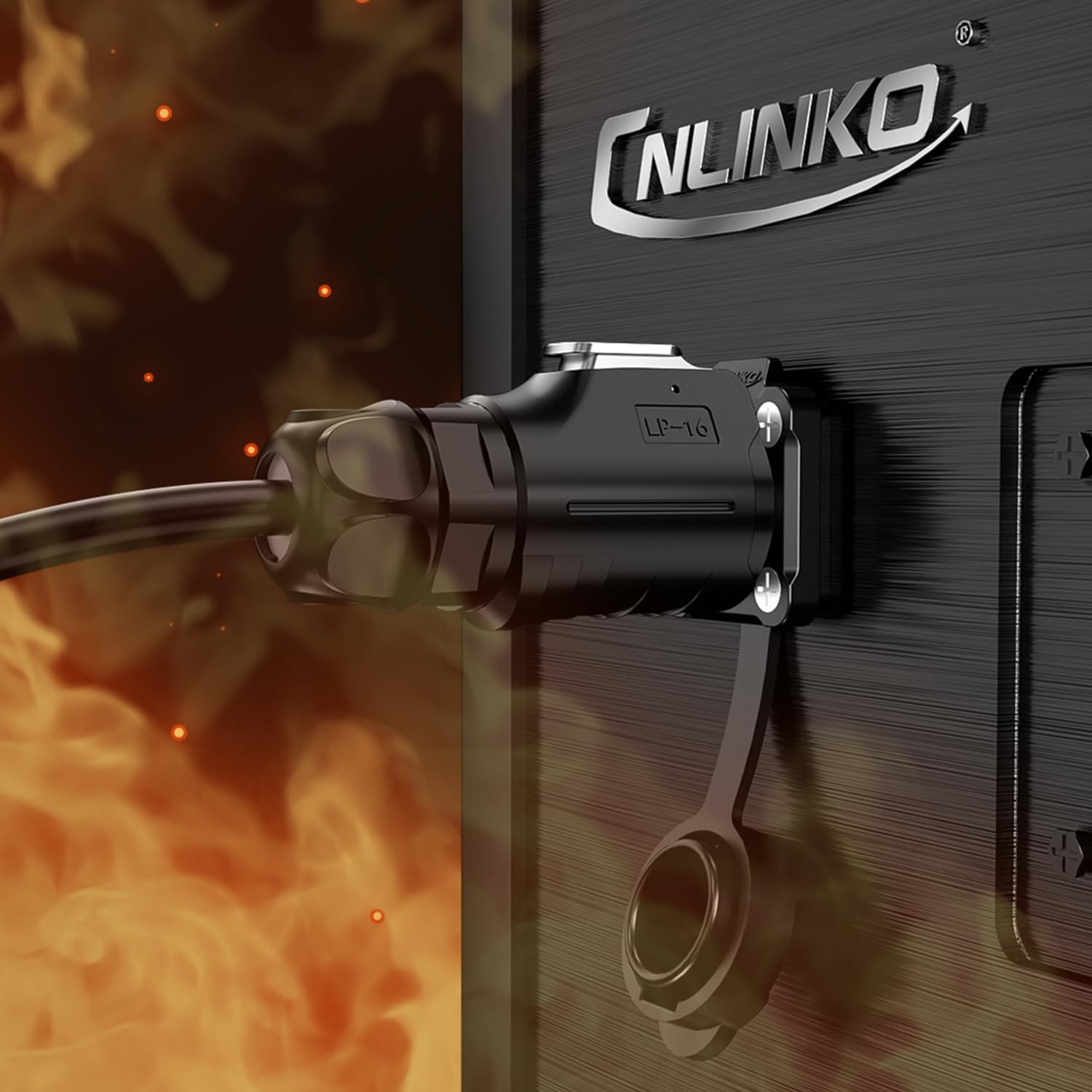

High mechanical strength, good insulation, low creep, anti-aging, high temperature resistance corrosion resistance.

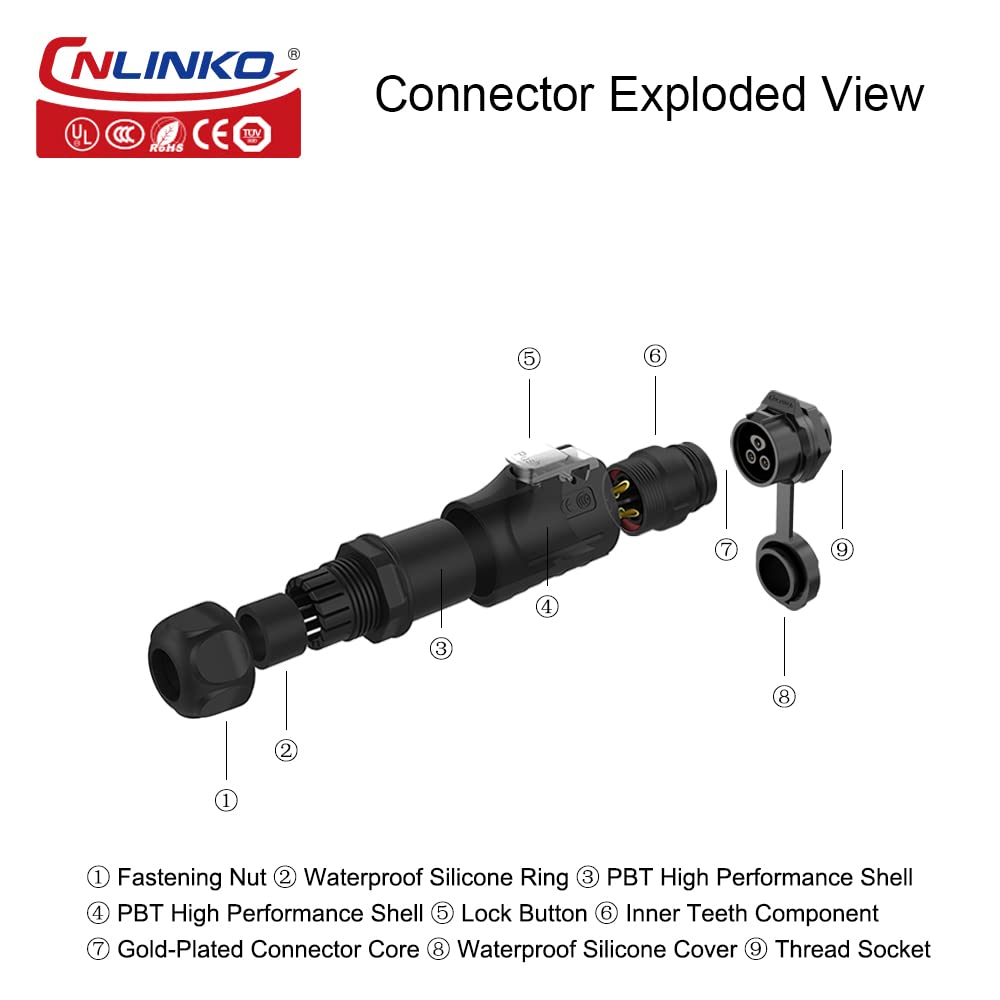

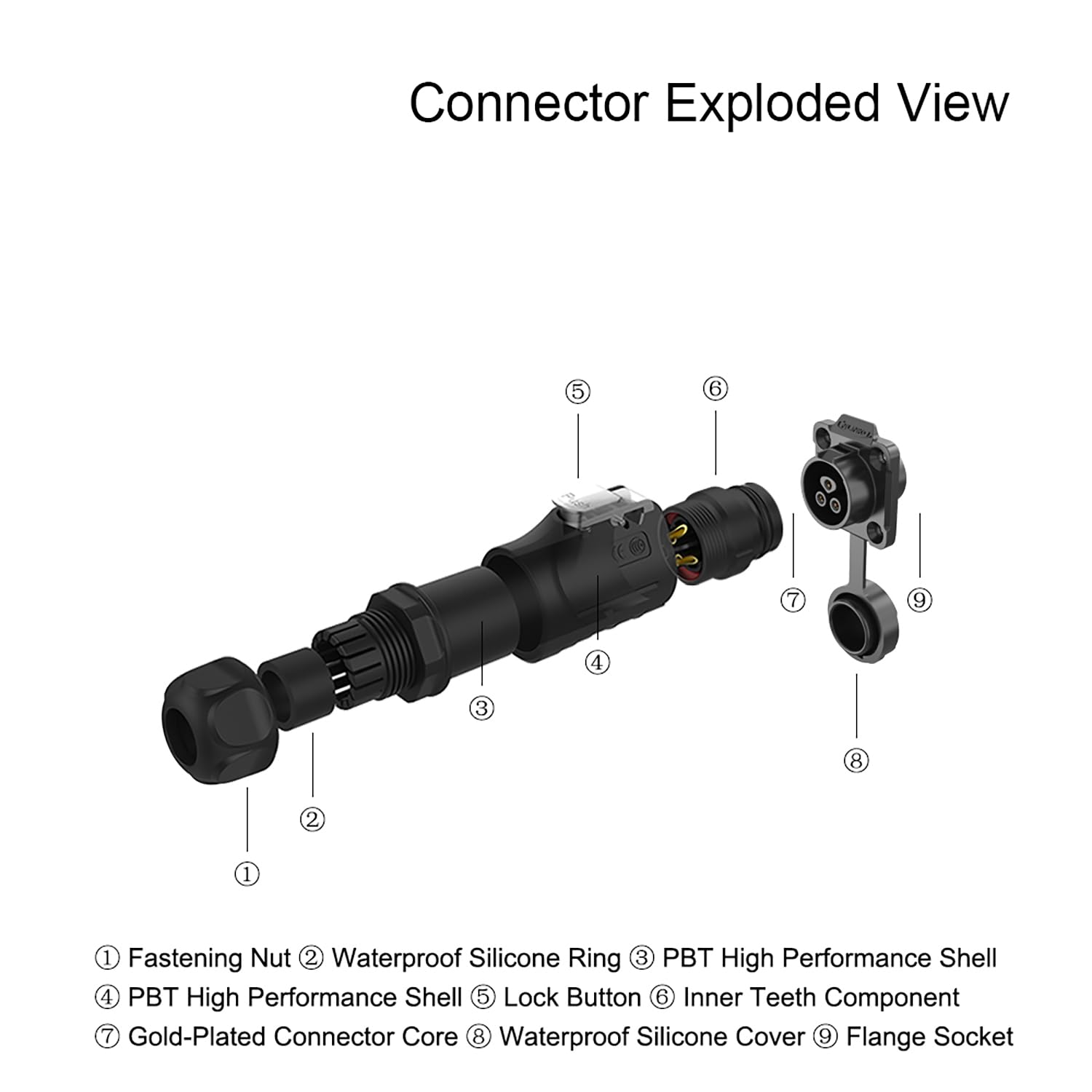

Exploded View

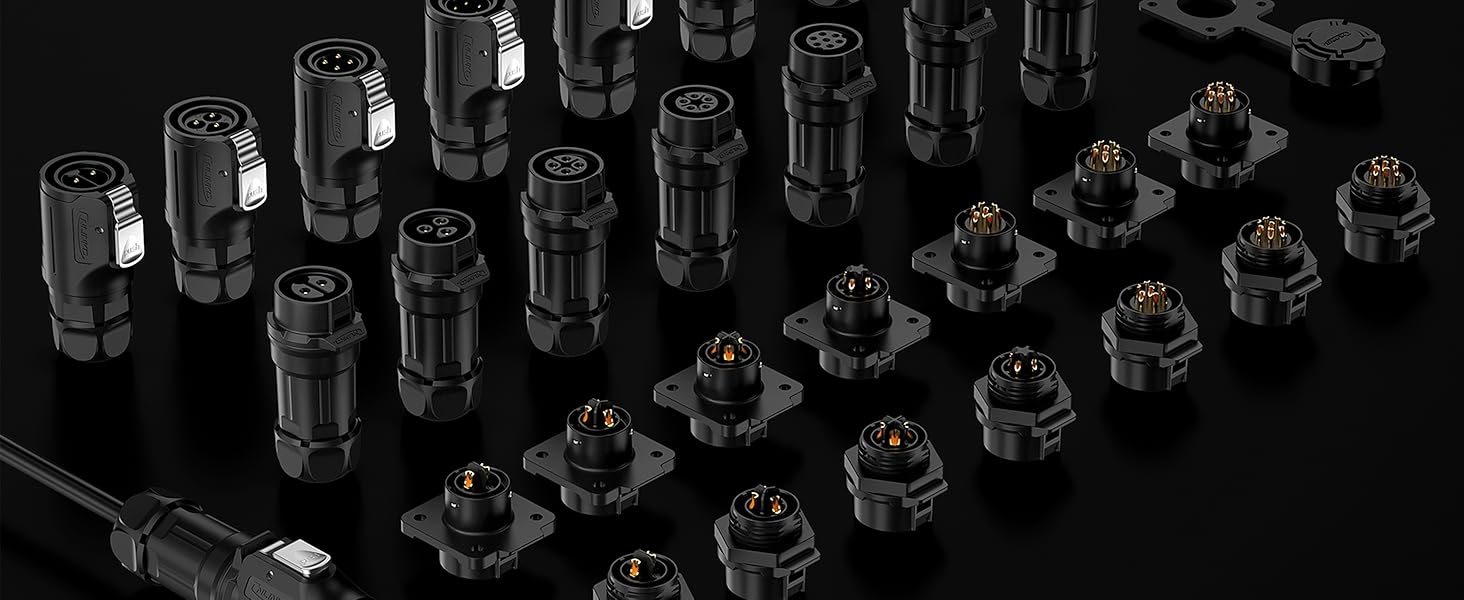

CNLINKO Multi-Series Products
#ad
#affiliate
“This product contains affiliate links…”

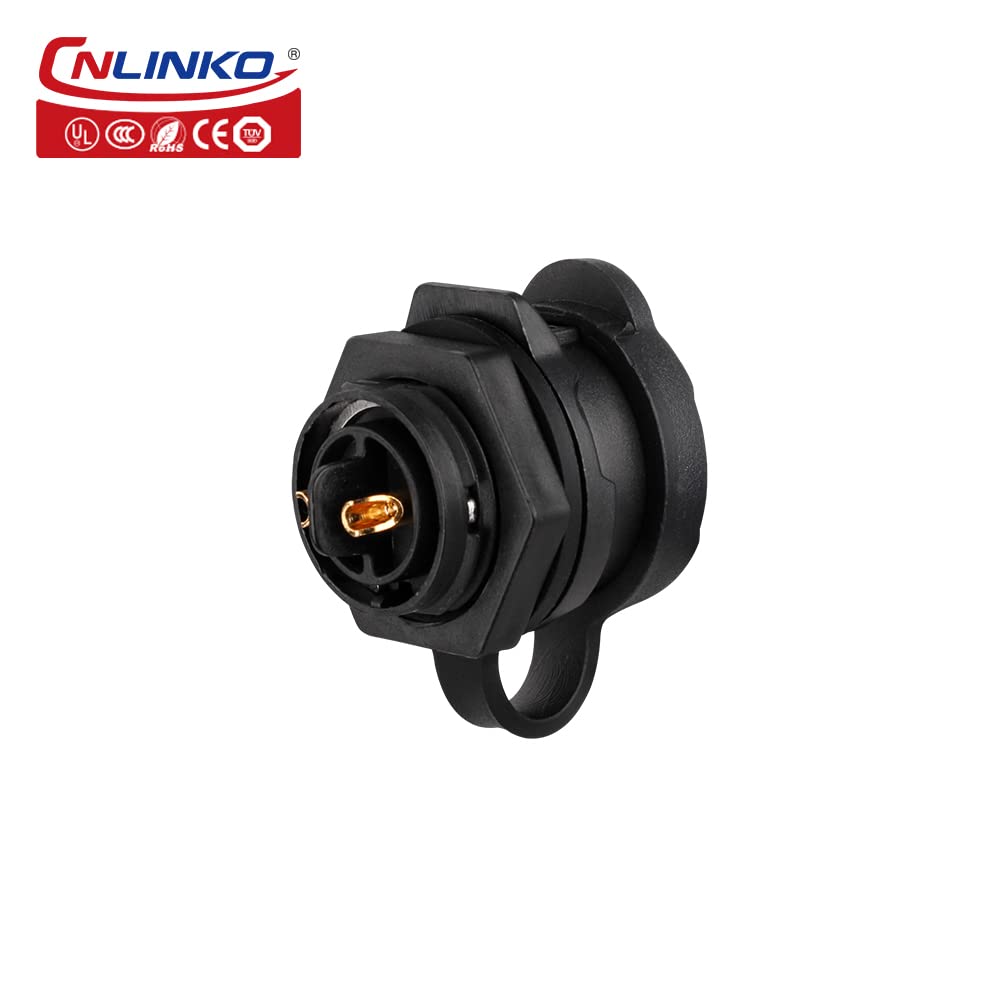

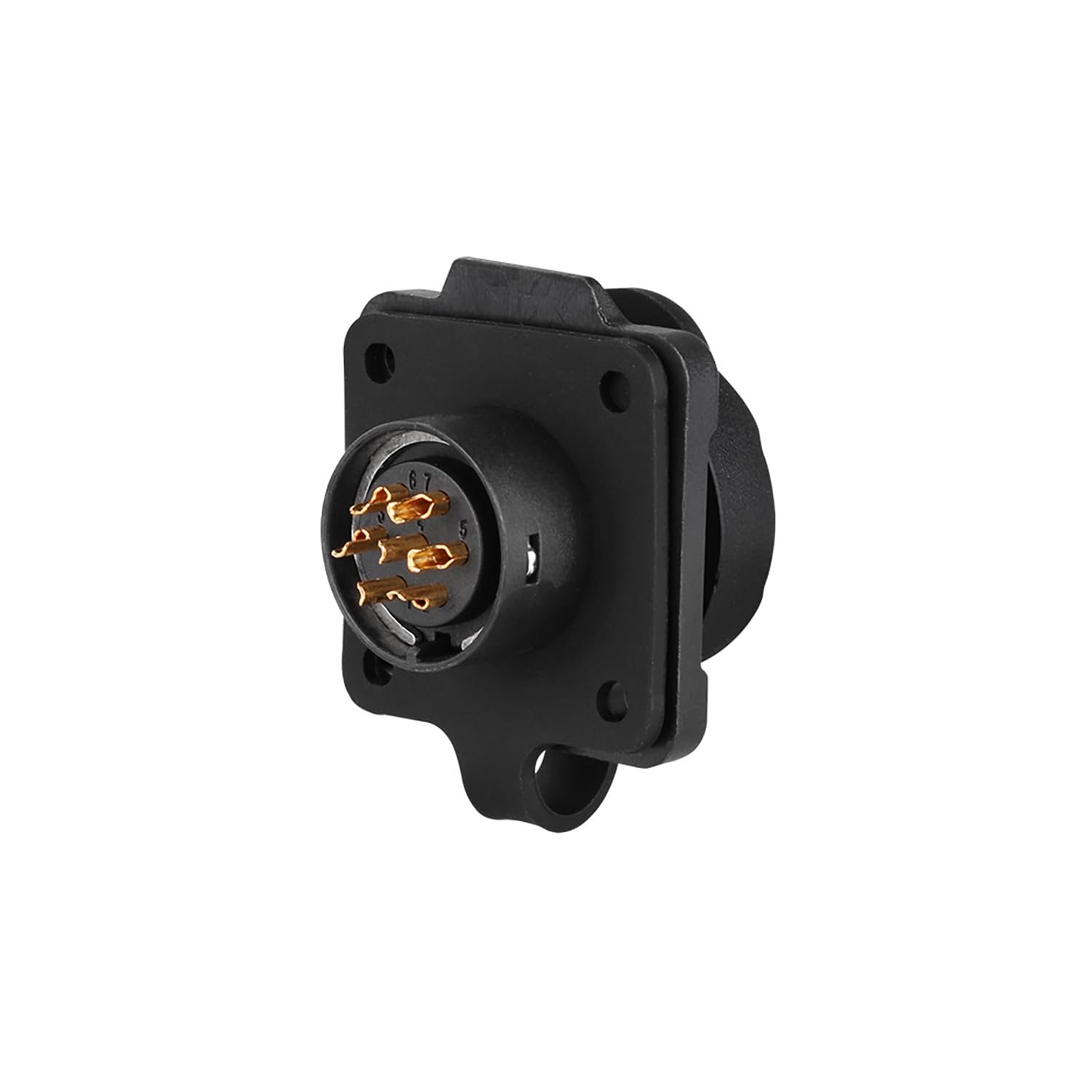

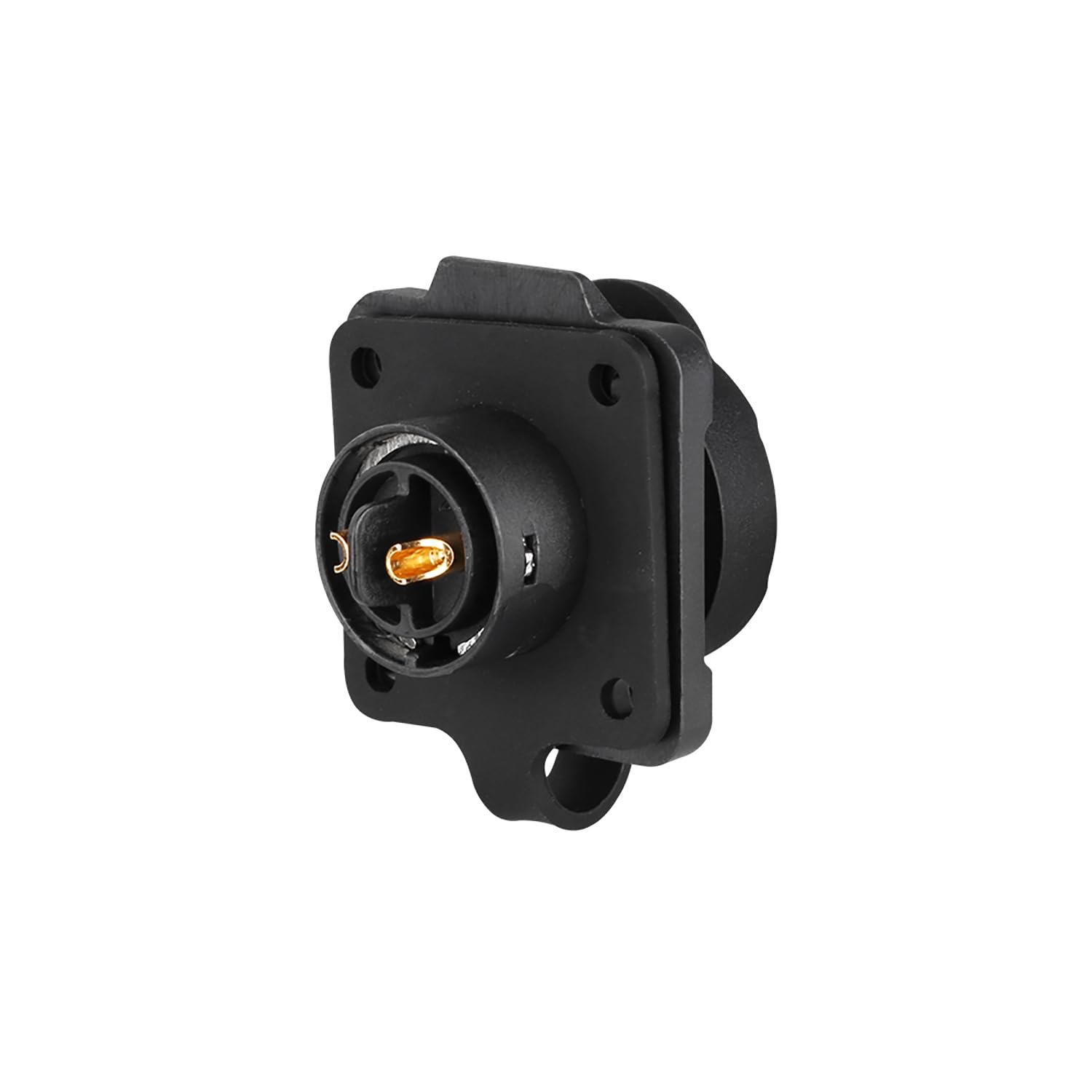

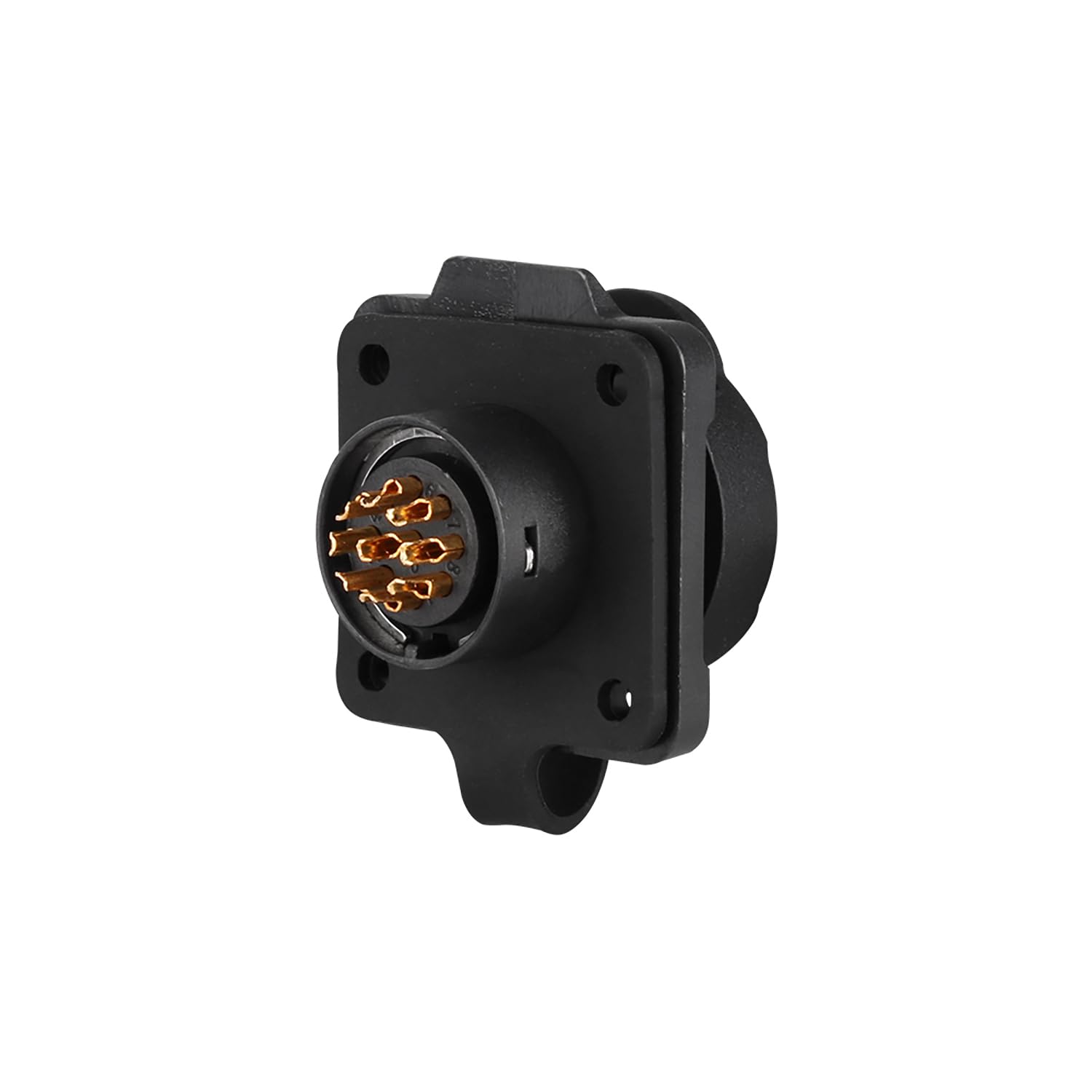

LP-16-Flange Socket |
LP-20-Flange Socket |
YM-20-Flange Socket |
LP-16-Flange Socket |
LP-16-Thread Socket |
LP-12-Flange Socket |
LP-12-Thread Socket |
|
|---|---|---|---|---|---|---|---|
|
Customer Reviews
|
57
|
240
|
139
|
64
|
57
|
45
|
45
|
|
Price
|
$28.24 | $35.05 | $31.63 | $26.99 | $24.99 | $22.99 | $25.98 |
|

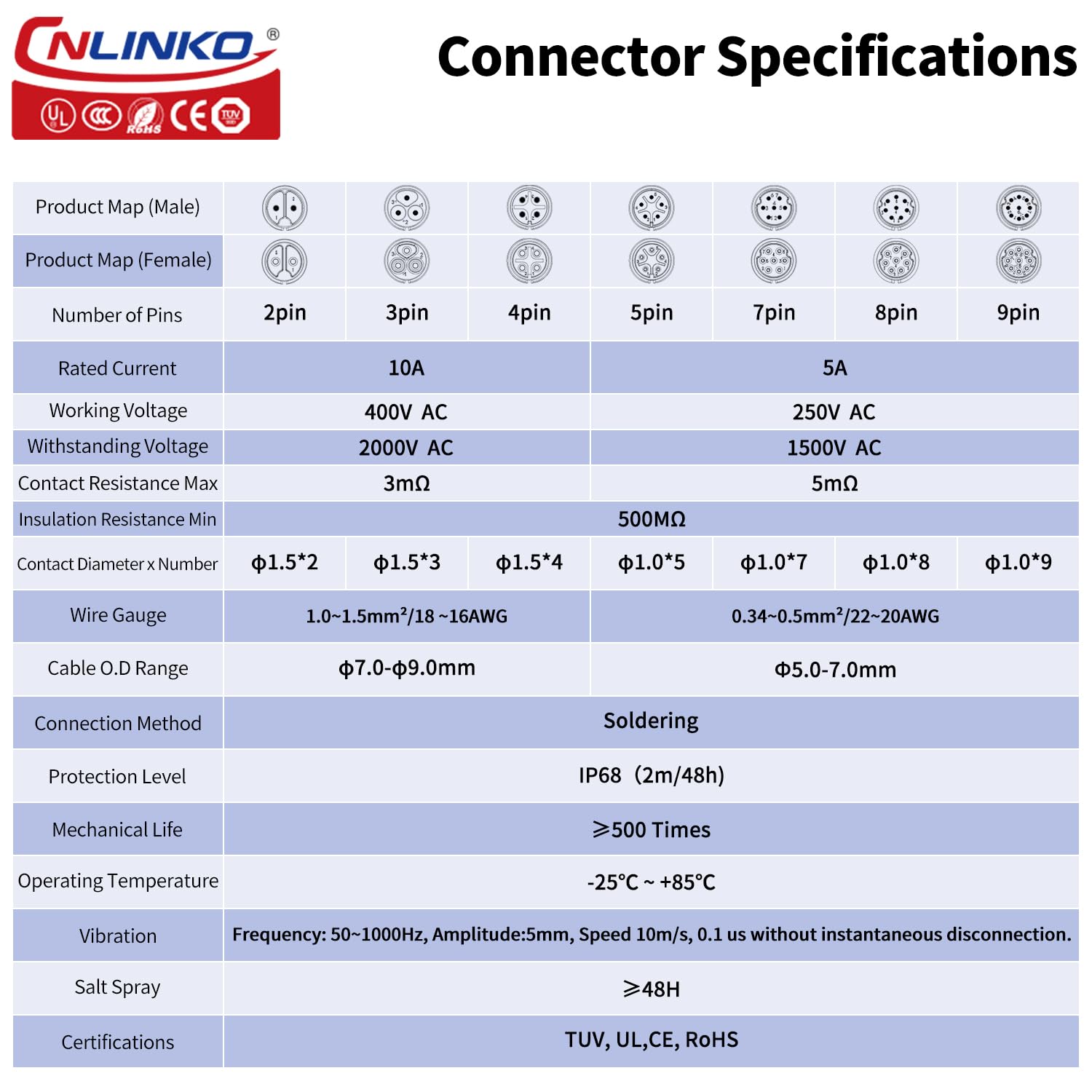

Number of Pin:
|
2-9 Pin | 2-14 Pin | 2-14 Pin | 2-9 Pin | 2-9 Pin | 2-8 Pin | 2-8 Pin |
|
Operating Voltage:
|
2-4/5-9Pin: AC 400V/AC 250V | 2-7/9-14Pin: AC 500V/AC 250V | 2-7/9-14Pin: AC 500V/AC 250V | 2-4/5-9Pin: AC 400V/AC 250V | 2-4/5-9Pin: AC 400V/AC 250V | 2-6/7-8Pin: AC 125V/AC 100V | 2-6/7-8Pin: AC 125V/AC 100V |
|
Rated Current:
|
2-4/5-9Pin: 10A/5A | 2-4/5-7/9-14Pin: 20A/10A/5A | 2-4/5-7/9-14Pin: 20A/10A/5A | 2-4/5-9Pin: 10A/5A | 2-4/5-9Pin: 10A/5A | 2-6/7-8Pin: 5A/3A | 2-6/7-8Pin: 5A/3A |
|
Applicable Wire Diameter:
|
Φ 3.0 ~ 9.0 mm | 2-4Pin: Φ 9.0~13.0 mm | 2-4Pin: Φ 9.0~13.0 mm | Φ 3.0 ~ 9.0 mm | Φ 3.0 ~ 9.0 mm | Φ 3.0 ~ 6.0 mm | Φ 3.0 ~ 6.0 mm |
|
Applicable Wire Diameter:
|
/ | 5-7Pin: Φ 7.0~10.0 mm | 5-7Pin: Φ 7.0~10.0 mm | / | / | / | / |
|
Applicable Wire Diameter:
|
/ | 9-14Pin: Φ 5.0~6.5 mm | 9-14Pin: Φ 5.0~6.5 mm | / | / | / | / |
|
Wire Specifications:
|
2-4Pin: 1.0~1.5mm2/18~16AWG | 2-4Pin: 2.5~4.0mm2/14~12AWG | 2-4Pin: 2.5~4.0mm2/14~12AWG | 2-4Pin: 1.0~1.5mm2/18~16AWG | 2-4Pin: 1.0~1.5mm2/18~16AWG | 2-6Pin: 0.34~0.75mm2/22~20AWG | 2-6Pin: 0.34~0.75mm2/22~20AWG |
|
Wire Specifications:
|
5-9Pin: 0.34~0.75mm2/22~20AWG | 5-7Pin: 1.0~1.5mm2/18~16AWG | 5-7Pin: 1.0~1.5mm2/18~16AWG | 5-9Pin: 0.34~0.75mm2/22~20AWG | 5-9Pin: 0.34~0.75mm2/22~20AWG | 7-8Pin: 0.34/22AWG | 7-8Pin: 0.34/22AWG |
|
Wire Specifications:
|
/ | 9-14Pin: 0.34~0.75mm2/22~20AWG | 9-14Pin: 0.34~0.75mm2/22~20AWG | / | / | / | / |
|
Protection Level:
|
IP67(Mated) | IP67(Mated) | IP67(Mated) | IP67(Mated) | IP67(Mated) | IP67(Mated) | IP67(Mated) |
|
Assembly Method:
|
Welding | Welding | Welding | Welding | Welding | Welding | Welding |
|
Material:
|
Plastic | Metal + Plastic | Plastic | Metal + Plastic | Plastic | Plastic | Plastic |
